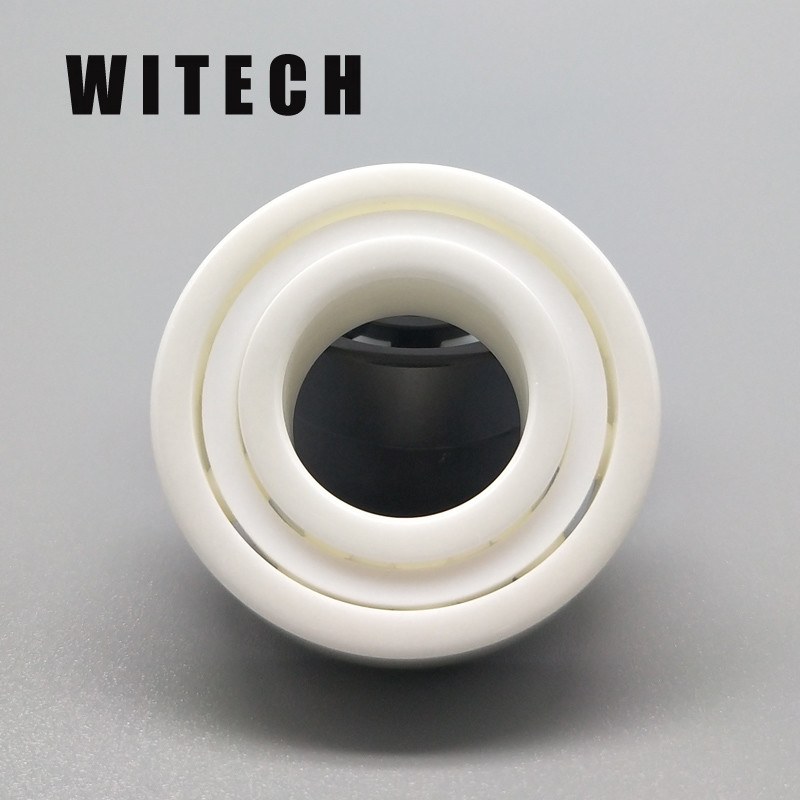

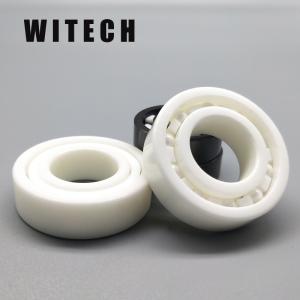

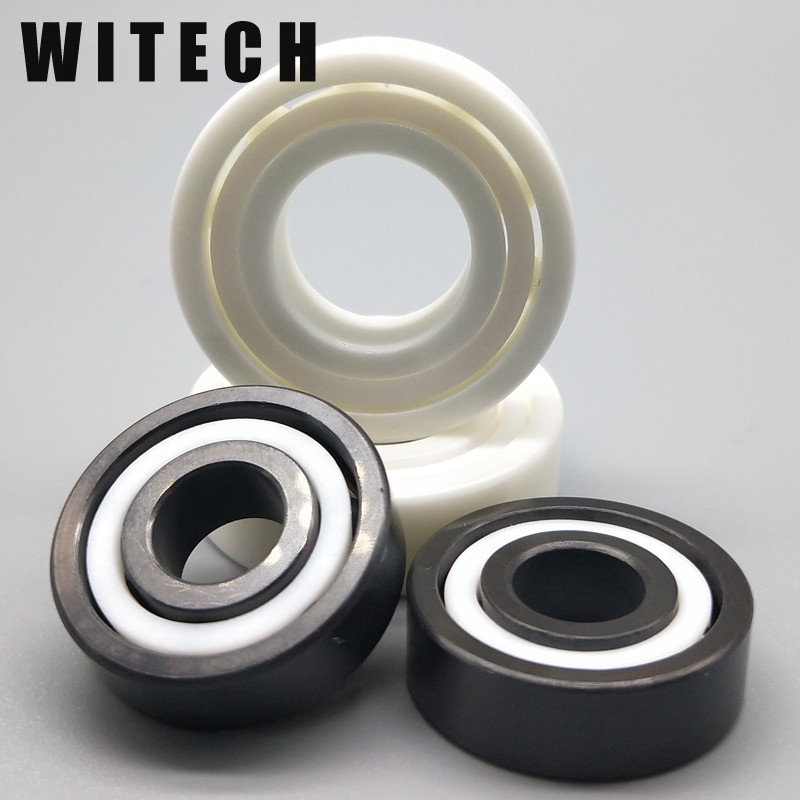

Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings

Name: Ceramic Bearings CE6008 ZrO2 Ceramic Wheel Bearings
Brand: WI-TECH
Price: 12 USD

Quality Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings wholesale

Brand Name : WI-TECH

Model Number : 6008

Place of Origin : China

MOQ : 10 pcs

Price : 12USD--5000USD

Payment Terms : T/T, Western Union

Supply Ability : 100,000 pcs/month

Delivery Time : 10-30 days

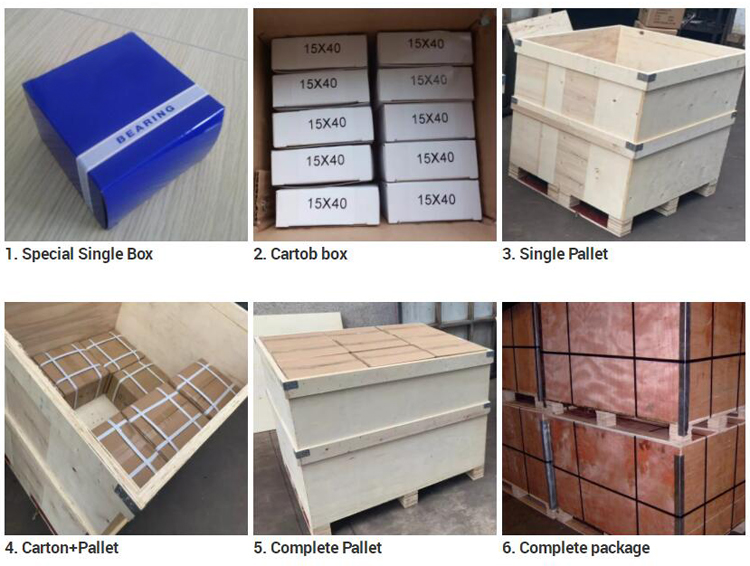

Packaging Details : Carton

Product name : Ceramic Wheel Bearings

Type : Ball bearing

Structure : Deep Groove Ball Bearing

Rings : ZrO2

Balls : ZrO2

Cage : PTFE, PEEK, Nylon

Bore size : 3 - 120 mm

Precision rating : P0 P6 P5 P4 P2, ABEC1，3，5，7

Number of row : Single Row

Seals type : Open or Sealed

Outside diameter : 10 - 700 mm

Service : OEM/ODM

Application : Machinery,Engine,Finger Spinner/Medical Devices/Skateboard

Lubrication : No grease

Feature : Long Life High Speed,low noise,Long Life .durable,High Precision

Package : Cartons Plastic Tube

Clearance : C2 C0 C3 C4 C5

Size : 10*30*9mm ~ 25*52*15mm

Sample : Available

Delivery : Air Express, Ocean Shipping

Contact Now

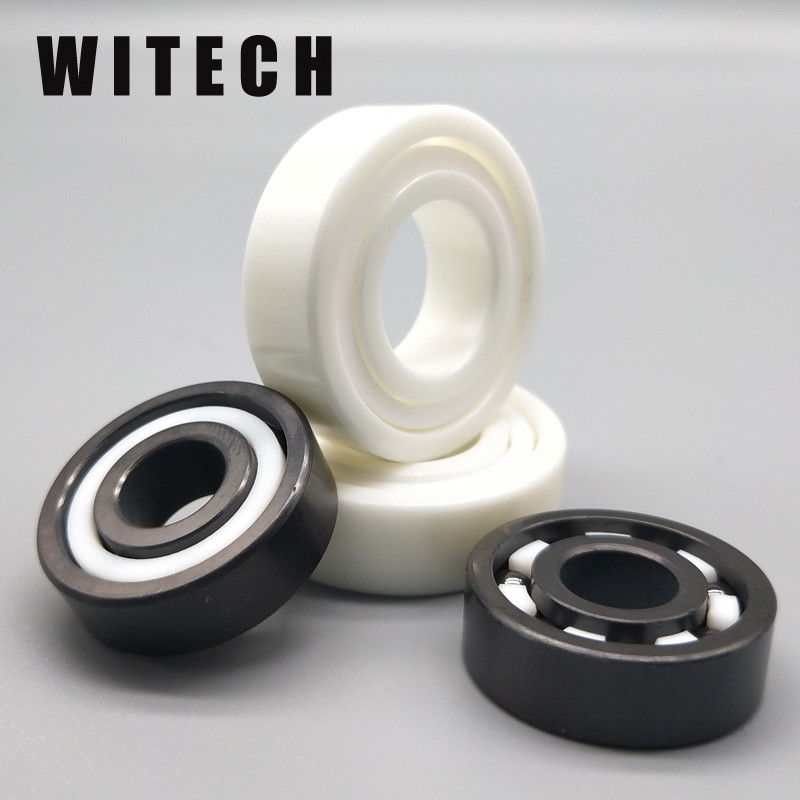

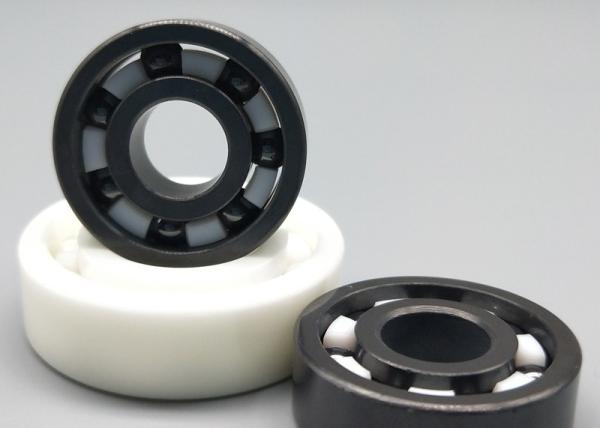

Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings

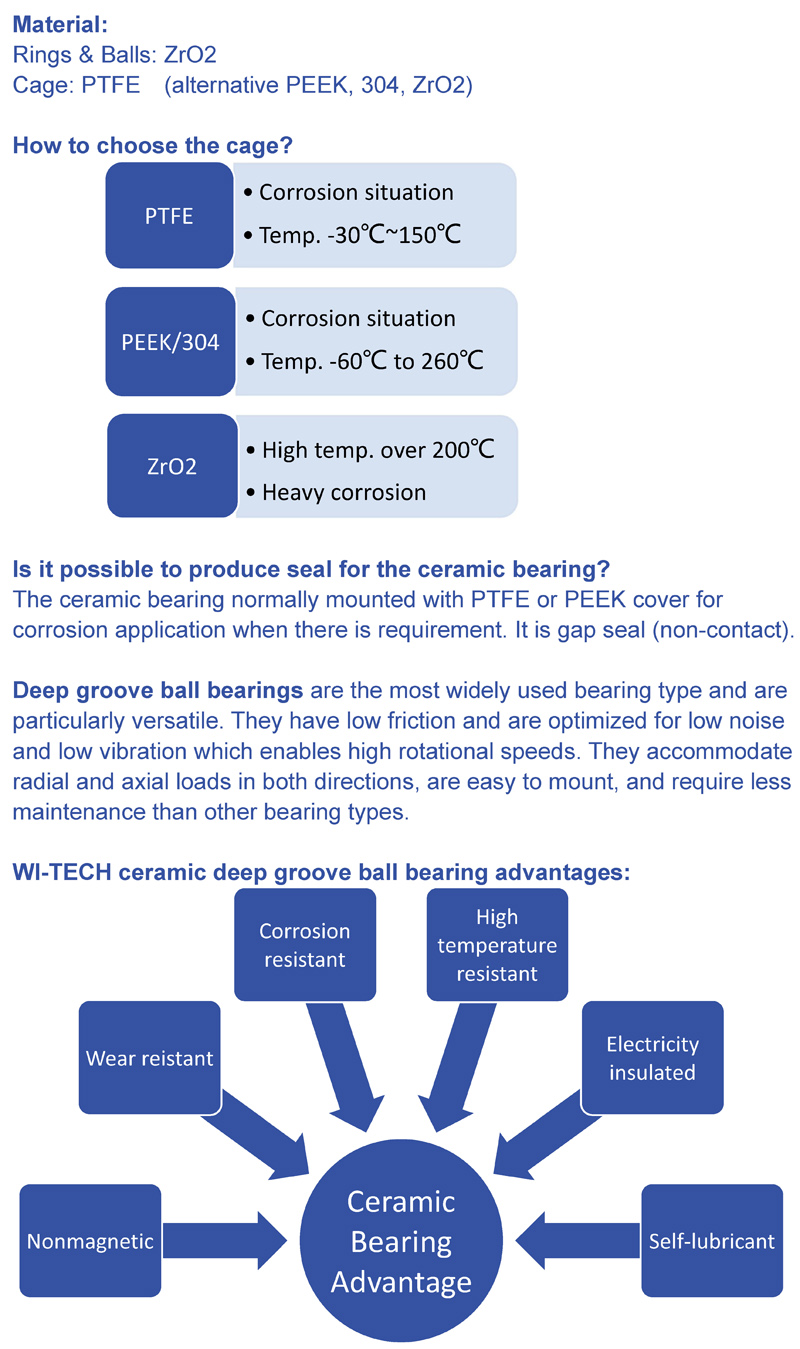

We construct the rolling elements in ceramic bearings using several ceramic materials, including

• Silicon nitride (Si3N4)
• Aluminum oxide (Al2O3)
• Zirconium oxide (ZrO2)
• Silicon carbide (SiC)

Ceramic bearings are also harder than steel bearings and therefore are more durable. Studies

show that ceramic bearings can last anywhere between 5 and 20 times longer. The smoother

surface of the ceramics also significantly reduces the risk of bearing seizure with little to no

lubrication. Furthermore, ceramic bearings can operate in harsh environments due to their

resistance to corrosion and degradation. Finally, their electrical insulation properties eliminate

the risk of electrical erosion and pitting of the rolling elements.

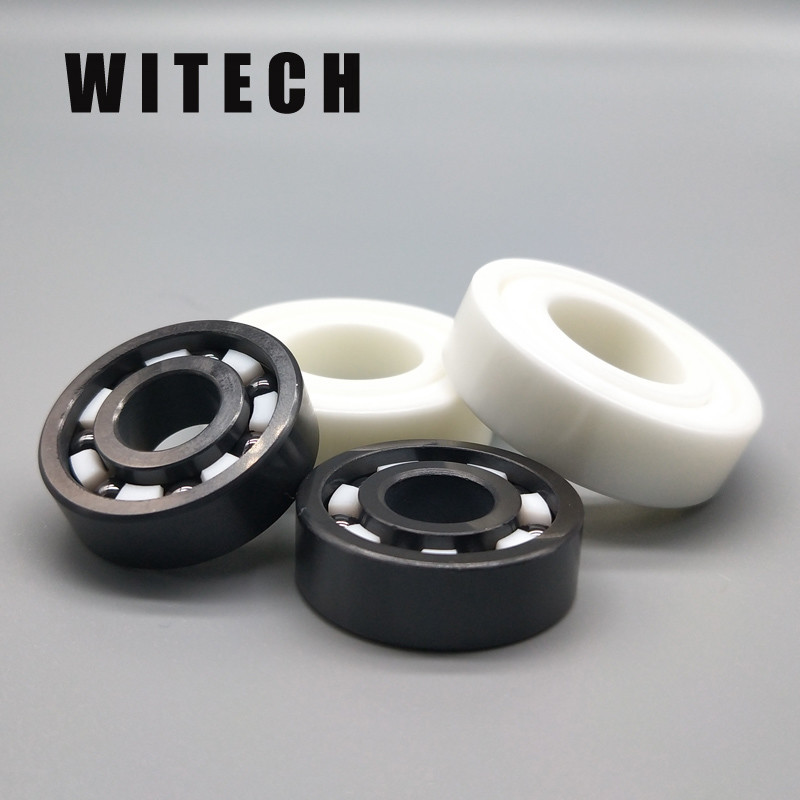

Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings

ZrO2 CERAMIC DEEP GROOVE BALL BEARING CE6007

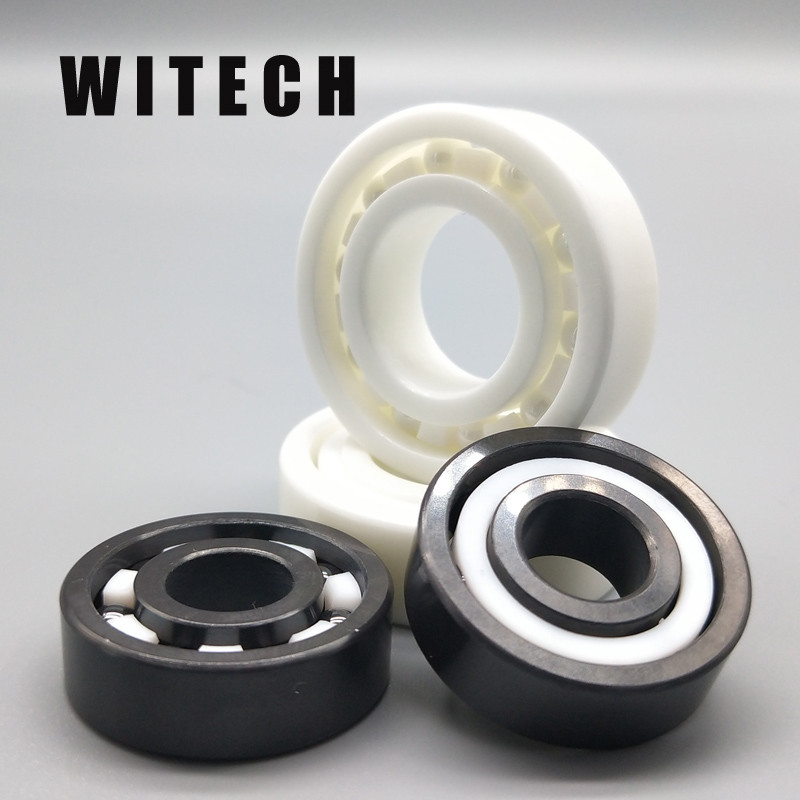

Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings

Specification of Deep Groove Ball Bearing ZrO2 /Si3N4 /SiC /Al2O3 /POM
Bearing Model	Bore Dia	Outer Dia	Width	Dynamic Radial	Static Radial	Max Speed
Bearing Model	(d)	(D)	(B)	(Newtons)	(Newtons)	(X1000 RPM)
602	2 mm	7mm	2.8mm	98.4	30.9	42.6
603	3 mm	9mm	3mm	69	45.3	40.2
604	4 mm	12mm	4mm	244.2	84	33.6
605	5 mm	14mm	5mm	339	121.8	30
606	6 mm	17mm	6mm	577.2	203.1	27
607	7 mm	19mm	6mm	595.8	215.1	25.8
608	8mm	22mm	7mm	839.7	330.9	24
609	9mm	24mm	7mm	855.9	346.5	22.8
6000	10 mm	26mm	8mm	1365	585	21.6
6001	12 mm	28mm	8mm	1530	720	19.2
6002	15 mm	32mm	9mm	1680	855	16.2
6003	17 mm	35mm	10mm	1800	975	15
6004	20 mm	42mm	12mm	2820	1515	12.6
6005	25 mm	47mm	12mm	3030	1755	10.8
6006	30 mm	55mm	13mm	3960	2475	9
6007	35 mm	62mm	14mm	4770	3090	7.8
6008	40 mm	68mm	15mm	5010	3450	7.2
6009	45 mm	75mm	16mm	6300	4530	6.6
6010	50 mm	80mm	16mm	6540	4980	5.94
6011	55 mm	90mm	18mm	8490	6360	5.4
6012	60 mm	95mm	18mm	8820	6960	5.1
6013	65 mm	100mm	18mm	9150	7560	4.8
6014	70 mm	110mm	20mm	11430	9270	4.26
6015	75 mm	115mm	20mm	11880	10050	4.02
6016	80 mm	125mm	22mm	14280	11940	3.78
6017	85 mm	130mm	22mm	14850	12930	3.6
6018	90 mm	140mm	24mm	17460	14910	3.36
6019	95 mm	145mm	24mm	18120	16170	3.18
6020	100 mm	150mm	24mm	18060	16260	3.18
6021	105 mm	160mm	26mm	21690	19740	2.88

Ceramic Bearings, CE6008 ZrO2 Ceramic Wheel Bearings
